Information introduction

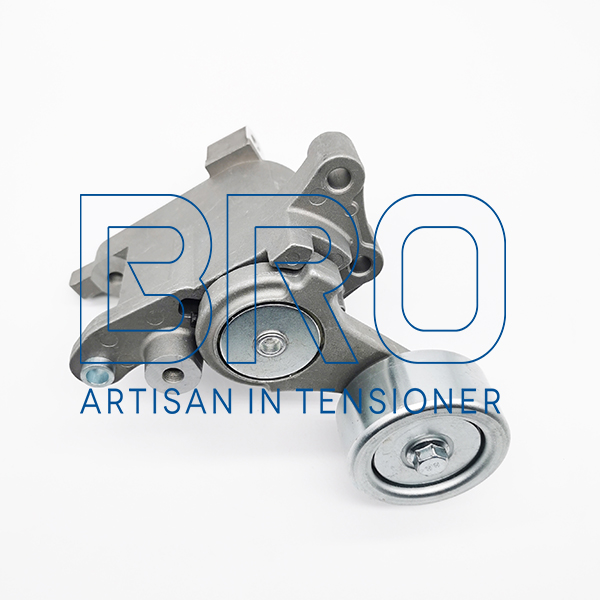

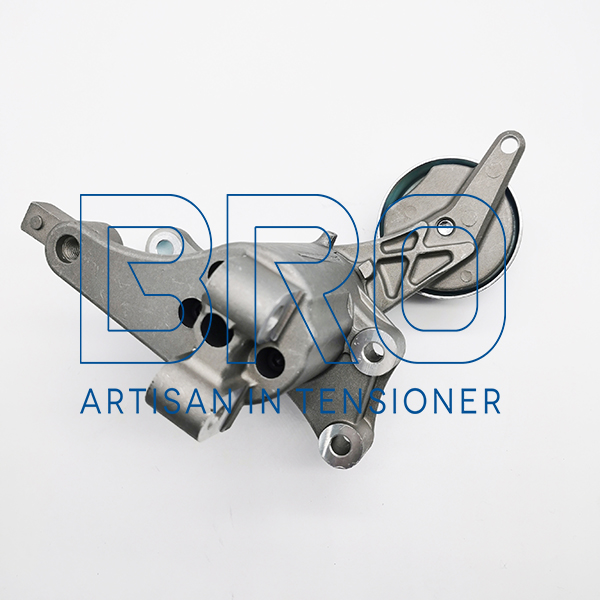

ITEM: SERPENTINE BELT TENSIONER
PART BRAND: BRO
BRO NO.: BA9174
OUTER DIAMETER（mm）75
WIDTH(mm) 32.5
MATERIAL: STEEL&ALUMINUM
DESCRIPTION
|
OEM NO. |
1662030020 1662030030 1662030031 166200L020 166200L010 |
|
REF.NO. |
BLUE PRINT ADT396515 GATES T39135 INA 534 0360 10 KAVO PARTS DTP-9013 NIPPARTS J1142058 DAYCO APV3012 SKF VKM61020 |
LINKED VEHICLES
Make Model Year Type Body Engine
TOYOTA DYNA Platform/Chassis (KD_, LY_, TRY2_, KDY2_, XZU4_, XZU3_, 2001.08 - 2.5 D4d Platform/Chassis 2494ccm 65kW 88HP (Diesel)
TOYOTA DYNA Platform/Chassis (KD_, LY_, TRY2_, KDY2_, XZU4_, XZU3_, 2001.08 - 2.5 D4d Platform/Chassis 2494ccm 75kW 102HP (Diesel)
TOYOTA DYNA Platform/Chassis (KD_, LY_, TRY2_, KDY2_, XZU4_, XZU3_, 2006.09 - 3.0 D4d Platform/Chassis 2982ccm 106kW 144HP (Diesel)
TOYOTA DYNA Platform/Chassis (KD_, LY_, TRY2_, KDY2_, XZU4_, XZU3_, 2006.09 - 3.0 D4d Platform/Chassis 2982ccm 80kW 109HP (Diesel)
TOYOTA DYNA Platform/Chassis (KD_, LY_, TRY2_, KDY2_, XZU4_, XZU3_, 2009.10 - 3.0 D4d Platform/Chassis 2982ccm 100kW 136HP (Diesel)
TOYOTA DYNA Platform/Chassis (KD_, LY_, TRY2_, KDY2_, XZU4_, XZU3_, 2006.09 - 3.0 D4d 4WD Platform/Chassis 2982ccm 106kW 144HP (Diesel)
TOYOTA HIACE / COMMUTER V (TRH2_, KDH2_) 2006.09 - 2.5 D-4D Bus 2494ccm 75kW 102HP (Diesel)
TOYOTA HIACE / COMMUTER V (TRH2_, KDH2_) 2005.01 - 2.5 D-4D 4WD Bus 2494ccm 94kW 128HP (Diesel)
TOYOTA HIACE / COMMUTER V (TRH2_, KDH2_) 2008.11 - 3.0 D Bus 2982ccm 106kW 144HP (Diesel)
TOYOTA HIACE / COMMUTER V (TRH2_, KDH2_) 2006.11 - 3.0 D (KDH223) Bus 2982ccm 80kW 109HP (Diesel)
TOYOTA HIACE IV Box (LXH1_, RZH1_, LH1_) 2001.11 - 2006.08 2.5 D-4D Box 2494ccm 65kW 88HP (Diesel)
TOYOTA HIACE IV Box (LXH1_, RZH1_, LH1_) 2001.11 - 2006.08 2.5 D-4D Box 2494ccm 75kW 102HP (Diesel)
TOYOTA HIACE IV Box (LXH1_, RZH1_, LH1_) 2001.11 - 2006.08 2.5 D-4D 4WD Box 2494ccm 75kW 102HP (Diesel)
TOYOTA HIACE IV Bus (LH1_) 2001.11 - 2006.08 2.5 D-4D Bus 2494ccm 65kW 88HP (Diesel)
TOYOTA HIACE IV Bus (LH1_) 2001.11 - 2006.08 2.5 D-4D Bus 2494ccm 75kW 102HP (Diesel)
TOYOTA HIACE IV Bus (LH1_) 2001.11 - 2006.08 2.5 D-4D 4WD Bus 2494ccm 75kW 102HP (Diesel)
TOYOTA HIACE V Box (TRH2_, KDH2_) 2006.09 - 2.5 D-4D Box 2494ccm 75kW 102HP (Diesel)
TOYOTA HIACE V Box (TRH2_, KDH2_) 2006.09 - 2.5 D-4D Box 2494ccm 70kW 95HP (Diesel)
TOYOTA HIACE V Box (TRH2_, KDH2_) 2006.09 - 2.5 D-4D Box 2494ccm 86kW 117HP (Diesel)
TOYOTA HIACE V Box (TRH2_, KDH2_) 2005.01 - 3.0 D Box 2982ccm 100kW 136HP (Diesel)
TOYOTA HIACE V Box (TRH2_, KDH2_) 2005.01 - 3.0 D Box 2982ccm 75kW 102HP (Diesel)
TOYOTA HIACE V Box (TRH2_, KDH2_) 2008.11 - 3.0 D Box 2982ccm 106kW 144HP (Diesel)
TOYOTA HILUX (VIGO) III Pickup (KUN_, TGN_, LAN_, GGN_) 2005.08 - 2.5 D 4WD Pickup 2494ccm 75kW 102HP (Diesel)
TOYOTA HILUX (VIGO) III Pickup (KUN_, TGN_, LAN_, GGN_) 2005.07 - 2.5 D-4D Pickup 2494ccm 75kW 102HP (Diesel)
TOYOTA HILUX (VIGO) III Pickup (KUN_, TGN_, LAN_, GGN_) 2007.12 - 2.5 D-4D Pickup 2494ccm 88kW 120HP (Diesel)
TOYOTA HILUX (VIGO) III Pickup (KUN_, TGN_, LAN_, GGN_) 2010.01 - 2.5 D-4D Pickup 2494ccm 106kW 144HP (Diesel)
TOYOTA HILUX (VIGO) III Pickup (KUN_, TGN_, LAN_, GGN_) 2007.12 - 2.5 D-4D 4WD Pickup 2494ccm 88kW 120HP (Diesel)
TOYOTA HILUX (VIGO) III Pickup (KUN_, TGN_, LAN_, GGN_) 2007.12 - 2.5 D-4D 4WD Pickup 2494ccm 106kW 144HP (Diesel)
TOYOTA HILUX (VIGO) III Pickup (KUN_, TGN_, LAN_, GGN_) 2005.08 - 2006.09 3.0 D (KUN16) Pickup 2982ccm 120kW 163HP (Diesel)
TOYOTA HILUX (VIGO) III Pickup (KUN_, TGN_, LAN_, GGN_) 2006.10 - 3.0 D (KUN16) Pickup 2982ccm 126kW 171HP (Diesel)
TOYOTA HILUX (VIGO) III Pickup (KUN_, TGN_, LAN_, GGN_) 2005.08 - 3.0 D 4WD (KUN26) Pickup 2982ccm 120kW 163HP (Diesel)
TOYOTA HILUX (VIGO) III Pickup (KUN_, TGN_, LAN_, GGN_) 2007.12 - 3.0 D-4D 4WD Pickup 2982ccm 126kW 171HP (Diesel)
TOYOTA HILUX II Pickup (LN8_, RN5_, LN6_, YN6_, YN5_, LN5_, RN6_) 2001.11 - 2005.07 2.5 D-4D Pickup 2494ccm 65kW 88HP (Diesel)
TOYOTA HILUX II Pickup (LN8_, RN5_, LN6_, YN6_, YN5_, LN5_, RN6_) 2001.11 - 2005.07 2.5 D-4D 4WD Pickup 2494ccm 75kW 102HP (Diesel)
TOYOTA HILUX III Pickup (KUN_, TGN_, LAN_, GGN_) 2005.08 - 2.5 D 4WD Pickup 2494ccm 75kW 102HP (Diesel)
TOYOTA HILUX III Pickup (KUN_, TGN_, LAN_, GGN_) 2005.07 - 2.5 D-4D Pickup 2494ccm 75kW 102HP (Diesel)
TOYOTA HILUX III Pickup (KUN_, TGN_, LAN_, GGN_) 2007.12 - 2.5 D-4D Pickup 2494ccm 88kW 120HP (Diesel)
TOYOTA HILUX III Pickup (KUN_, TGN_, LAN_, GGN_) 2010.01 - 2.5 D-4D Pickup 2494ccm 106kW 144HP (Diesel)
TOYOTA HILUX III Pickup (KUN_, TGN_, LAN_, GGN_) 2007.12 - 2.5 D-4D 4WD Pickup 2494ccm 88kW 120HP (Diesel)
TOYOTA HILUX III Pickup (KUN_, TGN_, LAN_, GGN_) 2007.12 - 2.5 D-4D 4WD Pickup 2494ccm 106kW 144HP (Diesel)
TOYOTA HILUX III Pickup (KUN_, TGN_, LAN_, GGN_) 2005.08 - 2006.09 3.0 D (KUN16) Pickup 2982ccm 120kW 163HP (Diesel)
TOYOTA HILUX III Pickup (KUN_, TGN_, LAN_, GGN_) 2006.10 - 3.0 D (KUN16) Pickup 2982ccm 126kW 171HP (Diesel)
TOYOTA HILUX III Pickup (KUN_, TGN_, LAN_, GGN_) 2005.08 - 3.0 D 4WD (KUN26) Pickup 2982ccm 120kW 163HP (Diesel)
TOYOTA HILUX III Pickup (KUN_, TGN_, LAN_, GGN_) 2007.12 - 3.0 D-4D 4WD Pickup 2982ccm 126kW 171HP (Diesel)
PACKAGE & DELIVERY
PACKAGE POLY BAG&BRO BRANDED BOX OR CUSTOMIZED BOX IS AVAILABLE
PORT NINGBO/SHANGHAI
LOCATION RUIAN
PRODUCTION LEAD TIME 30DAYS AFTER COMFIRM
