Information introduction

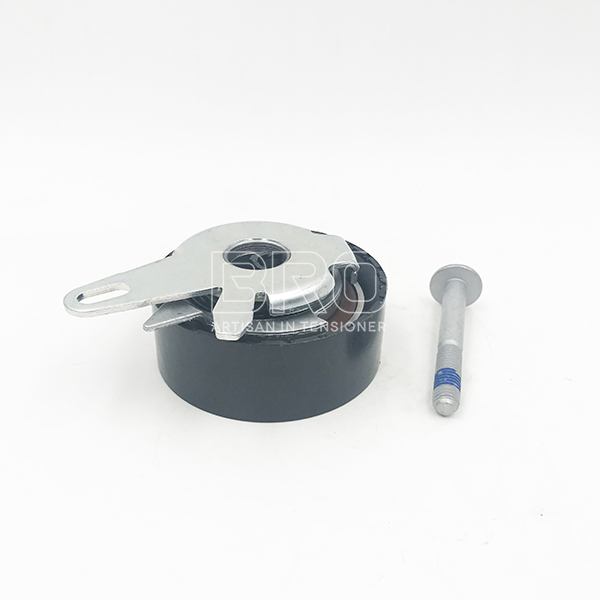

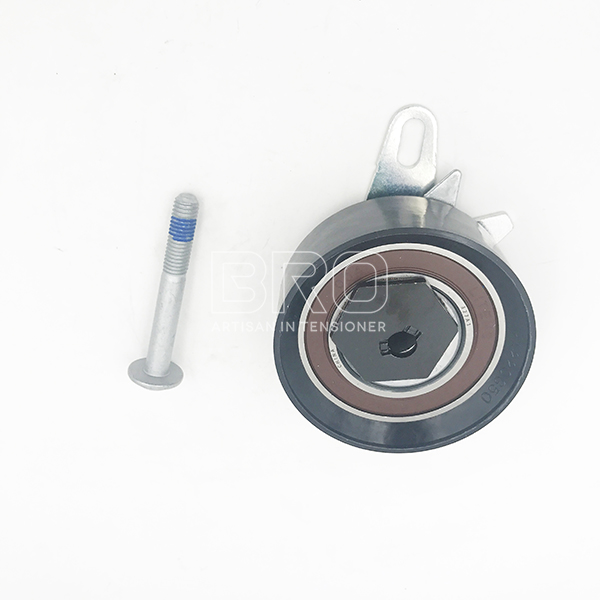

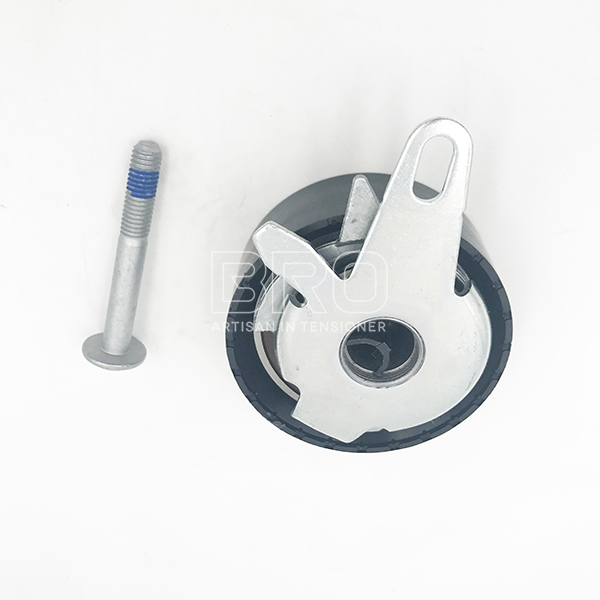

ITEM: TIMING BELT TENSIONER
PART BRAND: BRO
BRO NO.: BA1073
OUTER DIAMETER（mm） 74
WIDTH(mm) 27
MATERIAL: PLASTIC
DESCRIPTION
|
OEM NO. |
074109243C 074109243H |
|
REF.NO. |
INA 531 0278 30 DAYCO ATB2327 GATES T43054 SKF VKM11054 FEBI 11560 |
LINKED VEHICLES
Volvo 850 (854) 2.5 TDI 2.5 L / 2461 cc 1995.08 - 1996.12 103 Kw / 140 HP Fitting Position: Left, Driven Units: Driven unit: camshaft
Volvo 850 Estate (855) 2.5 TDI 2.5 L / 2461 cc 1995.08 - 1996.12 103 Kw / 140 HP Fitting Position: Left, Driven Units: Driven unit: camshaft
Volvo S70 (874) 2.5 TDI 2.5 L / 2461 cc 1997.01 - 2000.11 103 Kw / 140 HP Fitting Position: Left, Driven Units: Driven unit: camshaft
Volvo S70 (874) 2.5 TDi AWD 2.5 L / 2460 cc 1999.10 - 2000.09 103 Kw / 140 HP Fitting Position: Left, Driven Units: Driven unit: camshaft
Volvo S80 I (184) 2.5 TDI 2.5 L / 2461 cc 1999.01 - 2006.07 103 Kw / 140 HP Fitting Position: Left, Driven Units: Driven unit: camshaft
Volvo V70 I (875, 876) 2.5 TDI 2.5 L / 2461 cc 1995.12 - 2000.12 103 Kw / 140 HP Fitting Position: Left, Driven Units: Driven unit: camshaft
Volvo V70 I (875, 876) 2.5 TDi AWD 2.5 L / 2460 cc 1996.11 - 2000.02 103 Kw / 140 HP Fitting Position: Left, Driven Units: Driven unit: camshaft
Volvo V70 II (285) 2.5 TDI 2.5 L / 2461 cc 1999.11 - 2007.08 103 Kw / 140 HP Fitting Position: Left, Driven Units: Driven unit: camshaft
VW CRAFTER 30-35 Bus (2E_) 2.5 TDI 2.5 L / 2461 cc 2006.04 - 2011.07 65 Kw / 88 HP Fitting Position: Lower Left
VW CRAFTER 30-35 Bus (2E_) 2.5 TDI 2.5 L / 2461 cc 2006.04 - 2013.05 80 Kw / 109 HP Fitting Position: Lower Left
VW CRAFTER 30-35 Bus (2E_) 2.5 TDI 2.5 L / 2461 cc 2006.04 - 2013.05 100 Kw / 136 HP Fitting Position: Lower Left
VW CRAFTER 30-35 Bus (2E_) 2.5 TDI 2.5 L / 2461 cc 2006.04 - 2011.07 120 Kw / 163 HP Fitting Position: Lower Left
VW CRAFTER 30-50 Box (2E_) 2.5 TDI 2.5 L / 2461 cc 2006.04 - 2011.07 65 Kw / 88 HP Fitting Position: Lower Left
VW CRAFTER 30-50 Box (2E_) 2.5 TDI 2.5 L / 2461 cc 2006.04 - 2013.05 80 Kw / 109 HP Fitting Position: Lower Left
VW CRAFTER 30-50 Box (2E_) 2.5 TDI 2.5 L / 2461 cc 2006.04 - 2013.05 100 Kw / 136 HP Fitting Position: Lower Left
VW CRAFTER 30-50 Box (2E_) 2.5 TDI 2.5 L / 2461 cc 2006.04 - 2011.07 120 Kw / 163 HP Fitting Position: Lower Left
VW CRAFTER 30-50 Platform/Chassis (2F_) 2.5 TDI 2.5 L / 2461 cc 2006.04 - 2011.07 65 Kw / 88 HP Fitting Position: Lower Left
VW CRAFTER 30-50 Platform/Chassis (2F_) 2.5 TDI 2.5 L / 2461 cc 2006.04 - 2013.05 80 Kw / 109 HP Fitting Position: Lower Left
VW CRAFTER 30-50 Platform/Chassis (2F_) 2.5 TDI 2.5 L / 2461 cc 2006.04 - 2013.05 100 Kw / 136 HP Fitting Position: Lower Left
VW CRAFTER 30-50 Platform/Chassis (2F_) 2.5 TDI 2.5 L / 2461 cc 2006.04 - 2011.07 120 Kw / 163 HP Fitting Position: Lower Left
VW LT 28-35 II Bus (2DB, 2DE, 2DK) 2.5 SDI 2.5 L / 2461 cc 1996.07 - 2006.07 55 Kw / 75 HP Fitting Position: Left, Driven Units: Driven unit: camshaft
VW LT 28-46 II Box (2DA, 2DD, 2DH) 2.5 SDI 2.5 L / 2461 cc 1996.09 - 2006.07 55 Kw / 75 HP Fitting Position: Left, Driven Units: Driven unit: camshaft
VW LT 28-46 II Platform/Chassis (2DC, 2DF, 2DG, 2DL, 2DM) 2.5 SDI 2.5 L / 2461 cc 1996.09 - 2006.07 55 Kw / 75 HP Fitting Position: Left, Driven Units: Driven unit: camshaft
VW TRANSPORTER IV Box (70XA) 2.5 TDI 2.5 L / 2461 cc 1998.12 - 2003.04 65 Kw / 88 HP Fitting Position: Left, Driven Units: Driven unit: camshaft
VW TRANSPORTER IV Box (70XA) 2.5 TDI 2.5 L / 2461 cc 2000.09 - 2003.04 111 Kw / 151 HP Fitting Position: Left, Driven Units: Driven unit: camshaft
VW TRANSPORTER IV Box (70XA) 2.5 TDI Syncro 2.5 L / 2461 cc 1995.09 - 2003.04 75 Kw / 102 HP Engine Code: AXL, Fitting Position: Left, Driven Units: Driven unit: camshaft
VW TRANSPORTER IV Bus (70XB, 70XC, 7DB, 7DW, 7DK) 2.5 TDI 2.5 L / 2461 cc 1998.05 - 2003.04 65 Kw / 88 HP Fitting Position: Left, Driven Units: Driven unit: camshaft
VW TRANSPORTER IV Bus (70XB, 70XC, 7DB, 7DW, 7DK) 2.5 TDI 2.5 L / 2461 cc 1998.05 - 2003.04 111 Kw / 151 HP Fitting Position: Left, Driven Units: Driven unit: camshaft
VW TRANSPORTER IV Bus (70XB, 70XC, 7DB, 7DW, 7DK) 2.5 TDI Syncro 2.5 L / 2461 cc 1996.01 - 2003.04 75 Kw / 102 HP Engine Code: AXL, Fitting Position: Left, Driven Units: Driven unit: camshaft
VW TRANSPORTER IV Platform/Chassis (70XD) 2.5 TDI 2.5 L / 2461 cc 1998.05 - 2003.04 65 Kw / 88 HP Fitting Position: Left, Driven Units: Driven unit: camshaft
VW TRANSPORTER IV Platform/Chassis (70XD) 2.5 TDI Syncro 2.5 L / 2461 cc 1998.05 - 2003.04 75 Kw / 102 HP Engine Code: AXL, Fitting Position: Left, Driven Units: Driven unit: camshaft
PACKAGE & DELIVERY
PACKAGE POLY BAG&BRO BRANDED BOX OR CUSTOMIZED BOX IS AVAILABLE
PORT NINGBO/SHANGHAI
LOCATION RUIAN
PRODUCTION LEAD TIME 30DAYS AFTER COMFIRM
