BELT TENSIONER 03G903315A for AUDI SEAT VW SKODA

home/products/VW&AUDI&SKODA&SEAT/BELT TENSIONER 03G903315A for AUDI SEAT VW SKODA

BELT TENSIONER 03G903315A for AUDI SEAT VW SKODA

  • BELT TENSIONER 03G903315A for AUDI SEAT VW SKODA
  • BELT TENSIONER 03G903315A for AUDI SEAT VW SKODA
  • BELT TENSIONER 03G903315A for AUDI SEAT VW SKODA
  • BELT TENSIONER 03G903315A for AUDI SEAT VW SKODA
BELT TENSIONER 03G903315A for AUDI SEAT VW SKODA

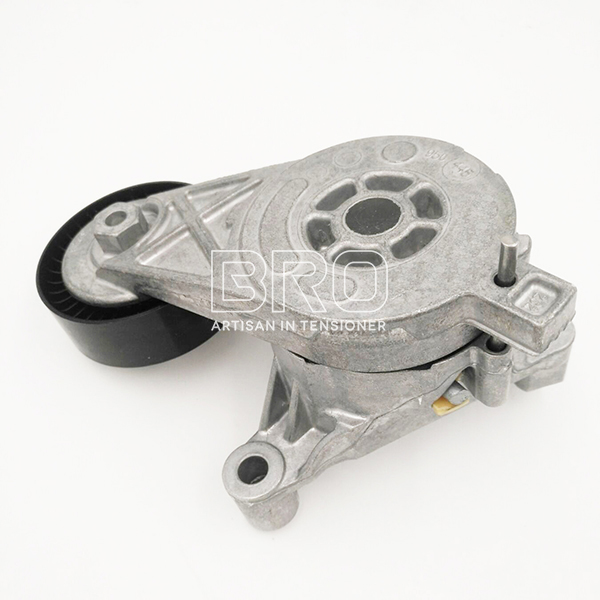

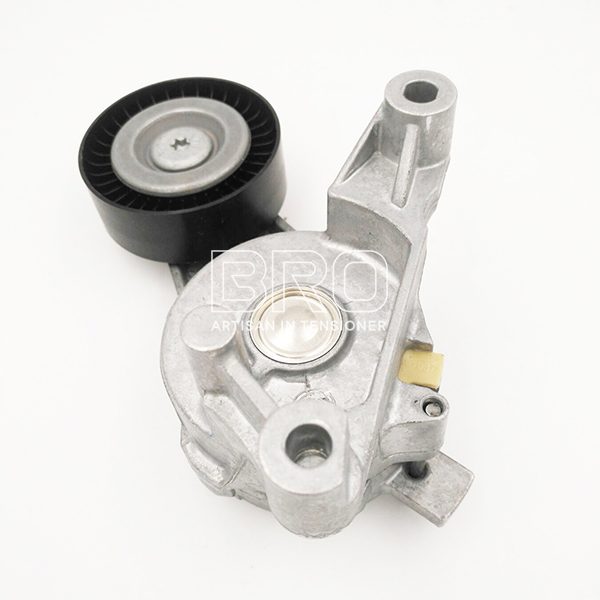

Information introduction ITEM: SERPENTINE BELT TENSIONER
PART BRAND: BRO
BRO NO.: BA1021
OUTER DIAMETER(mm) 70
WIDTH(mm) 25
MATERIAL: PLASTIC&ALUMINUM

Download
Send Inquiry 【Prev:BELT TENSIONER 022145299E for AUDI VW FORD SEAT】【Next:BELT TENSIONER 028903315M for AUDI VW 】
Product Detail

DESCRIPTION

OEM NO.
03G903315 03G903315A
REF.NO.
INA 534 0059 10 DAYCO APV2422 GATES T38438 SKF VKM31022 FEBI 27806


LINKED VEHICLES

Audi A3 (8P1) 1.9 TDI 1.9 L / 1896 cc 2003.05 - 2010.05 77 Kw / 105 HP Chassis number to: 8P-5A200 000, Chassis number to: 8P-5B050 000, Engine Code: BKC, Fitting Position: Centre, Driven Units: Driven unit: alternator
Audi A3 (8P1) 2.0 TDI 16V 2.0 L / 1968 cc 2003.05 - 2012.08 103 Kw / 140 HP Engine Code: BKD, Fitting Position: Centre, Driven Units: Driven unit: alternator
Audi A3 (8P1) 2.0 TDI 16V quattro 2.0 L / 1968 cc 2004.08 - 2012.08 103 Kw / 140 HP Engine Code: BKD, Fitting Position: Centre, Driven Units: Driven unit: alternator
Audi A3 (8P1) 2.0 TDI 2.0 L / 1968 cc 2003.05 - 2012.08 100 Kw / 136 HP Fitting Position: Centre, Driven Units: Driven unit: alternator
Audi A3 (8P1) 2.0 TDI 2.0 L / 1968 cc 2006.03 - 2012.08 125 Kw / 170 HP Fitting Position: Centre, Driven Units: Driven unit: alternator
Audi A3 (8P1) 2.0 TDI 2.0 L / 1968 cc 2006.06 - 2008.06 120 Kw / 163 HP Fitting Position: Centre, Driven Units: Driven unit: alternator
Audi A3 (8P1) 2.0 TDI quattro 2.0 L / 1968 cc 2003.05 - 2008.06 100 Kw / 136 HP Fitting Position: Centre, Driven Units: Driven unit: alternator
Audi A3 (8P1) 2.0 TDI quattro 2.0 L / 1968 cc 2006.03 - 2012.08 125 Kw / 170 HP Fitting Position: Centre, Driven Units: Driven unit: alternator
Audi A3 Sportback (8PA) 1.9 TDI 1.9 L / 1896 cc 2004.09 - 2010.05 77 Kw / 105 HP Chassis number to: 8P-5A200 000, Chassis number to: 8P-5B050 000, Engine Code: BKC, Fitting Position: Centre, Driven Units: Driven unit: alternator
Audi A3 Sportback (8PA) 2.0 TDI 16V 2.0 L / 1968 cc 2004.09 - 2013.03 103 Kw / 140 HP Engine Code: BKD, Fitting Position: Centre, Driven Units: Driven unit: alternator
Audi A3 Sportback (8PA) 2.0 TDI 16V quattro 2.0 L / 1968 cc 2005.11 - 2013.03 103 Kw / 140 HP Engine Code: BKD, Fitting Position: Centre, Driven Units: Driven unit: alternator
Audi A3 Sportback (8PA) 2.0 TDI 2.0 L / 1968 cc 2004.09 - 2013.03 100 Kw / 136 HP Fitting Position: Centre, Driven Units: Driven unit: alternator
Audi A3 Sportback (8PA) 2.0 TDI 2.0 L / 1968 cc 2006.03 - 2013.03 125 Kw / 170 HP Fitting Position: Centre, Driven Units: Driven unit: alternator
Audi A3 Sportback (8PA) 2.0 TDI 2.0 L / 1968 cc 2006.06 - 2008.06 120 Kw / 163 HP Fitting Position: Centre, Driven Units: Driven unit: alternator
Audi A3 Sportback (8PA) 2.0 TDI quattro 2.0 L / 1968 cc 2006.03 - 2013.03 125 Kw / 170 HP Fitting Position: Centre, Driven Units: Driven unit: alternator
Seat ALTEA (5P1) 1.9 TDI 1.9 L / 1896 cc 2004.04 - 77 Kw / 105 HP Chassis number to: 5P-5-165 000, Driven Units: Driven unit: alternator
Seat ALTEA (5P1) 2.0 TDI 16V 2.0 L / 1968 cc 2004.03 - 103 Kw / 140 HP Engine Code: BKD, Driven Units: Driven unit: alternator
Seat ALTEA (5P1) 2.0 TDI 2.0 L / 1968 cc 2004.03 - 2009.05 100 Kw / 136 HP Fitting Position: Upper, Driven Units: Driven unit: alternator
Seat ALTEA (5P1) 2.0 TDI 2.0 L / 1968 cc 2006.03 - 125 Kw / 170 HP Fitting Position: Upper, Driven Units: Driven unit: alternator
Seat ALTEA (5P1) 2.0 TDI 2.0 L / 1968 cc 2005.11 - 103 Kw / 140 HP Chassis number to: 5P-5-165 000, Fitting Position: Upper, Driven Units: Driven unit: alternator
Seat ALTEA XL (5P5, 5P8) 1.9 TDI 1.9 L / 1896 cc 2006.10 - 77 Kw / 105 HP Chassis number to: 5P-5-165 000, Driven Units: Driven unit: alternator
Seat ALTEA XL (5P5, 5P8) 2.0 TDI 16V 2.0 L / 1968 cc 2006.10 - 103 Kw / 140 HP Fitting Position: Upper, Driven Units: Driven unit: alternator
Seat ALTEA XL (5P5, 5P8) 2.0 TDI 2.0 L / 1968 cc 2007.06 - 125 Kw / 170 HP Fitting Position: Upper, Driven Units: Driven unit: alternator
Seat ALTEA XL (5P5, 5P8) 2.0 TDI 2.0 L / 1968 cc 2006.11 - 2009.03 100 Kw / 136 HP Fitting Position: Upper, Driven Units: Driven unit: alternator
Seat ALTEA XL (5P5, 5P8) 2.0 TDI 4x4 2.0 L / 1968 cc 2007.06 - 125 Kw / 170 HP Fitting Position: Upper, Driven Units: Driven unit: alternator
Seat LEON (1P1) 2.0 TDI 16V 2.0 L / 1968 cc 2005.07 - 2012.12 103 Kw / 140 HP Fitting Position: Upper, Driven Units: Driven unit: alternator
Seat LEON (1P1) 2.0 TDI 2.0 L / 1968 cc 2006.05 - 2012.12 125 Kw / 170 HP Fitting Position: Upper, Driven Units: Driven unit: alternator
Seat LEON (1P1) 2.0 TDI 2.0 L / 1968 cc 2005.07 - 2010.05 100 Kw / 136 HP Fitting Position: Upper, Driven Units: Driven unit: alternator
Seat TOLEDO III (5P2) 1.9 TDI 1.9 L / 1896 cc 2004.10 - 2009.05 77 Kw / 105 HP Chassis number to: 5P-5-165 000, Fitting Position: Upper, Driven Units: Driven unit: alternator
Seat TOLEDO III (5P2) 2.0 TDI 16V 2.0 L / 1968 cc 2004.04 - 2009.05 103 Kw / 140 HP Fitting Position: Upper, Driven Units: Driven unit: alternator
Seat TOLEDO III (5P2) 2.0 TDI 2.0 L / 1968 cc 2006.01 - 2009.05 125 Kw / 170 HP Chassis number to: 5P-5-165 000, Fitting Position: Upper, Driven Units: Driven unit: alternator
Seat TOLEDO III (5P2) 2.0 TDI 2.0 L / 1968 cc 2005.11 - 2009.05 103 Kw / 140 HP Fitting Position: Upper, Driven Units: Driven unit: alternator, Chassis number to: 5P-5-165 000, Fitting Position: Upper, Driven Units: Driven unit: alternator
Seat TOLEDO III (5P2) 2.0 TDI 2.0 L / 1968 cc 2004.09 - 2009.05 100 Kw / 136 HP Fitting Position: Upper, Driven Units: Driven unit: alternator
Skoda OCTAVIA II (1Z3) 1.9 TDI 1.9 L / 1896 cc 2004.06 - 2010.12 77 Kw / 105 HP Construction year to: 05.2005, Engine Code: BJB, Engine Code: BKC, Fitting Position: Left, Driven Units: Driven unit: alternator
Skoda OCTAVIA II (1Z3) 2.0 TDI 16V 2.0 L / 1968 cc 2004.02 - 2013.04 103 Kw / 140 HP Engine Code: BKD, Fitting Position: Left, Driven Units: Driven unit: alternator
Skoda OCTAVIA II (1Z3) 2.0 TDI 2.0 L / 1968 cc 2004.02 - 2010.05 100 Kw / 136 HP Fitting Position: Left, Driven Units: Driven unit: alternator
Skoda OCTAVIA II (1Z3) 2.0 TDI RS 2.0 L / 1968 cc 2006.04 - 2013.02 125 Kw / 170 HP Engine Code: BMN, Fitting Position: Left, Driven Units: Driven unit: alternator
Skoda OCTAVIA II Combi (1Z5) 1.9 TDI 1.9 L / 1896 cc 2004.09 - 2010.12 77 Kw / 105 HP Construction year to: 05.2005, Engine Code: BJB, Engine Code: BKC, Fitting Position: Left, Driven Units: Driven unit: alternator
Skoda OCTAVIA II Combi (1Z5) 1.9 TDI 4x4 1.9 L / 1896 cc 2004.11 - 2010.12 77 Kw / 105 HP Construction year to: 05.2005, Engine Code: BJB, Engine Code: BKC, Fitting Position: Left, Driven Units: Driven unit: alternator
Skoda OCTAVIA II Combi (1Z5) 2.0 TDI 16V 2.0 L / 1968 cc 2004.02 - 2013.05 103 Kw / 140 HP Engine Code: BKD, Fitting Position: Left, Driven Units: Driven unit: alternator
Skoda OCTAVIA II Combi (1Z5) 2.0 TDI 16V 2.0 L / 1968 cc 2004.02 - 2010.05 100 Kw / 136 HP Fitting Position: Left, Driven Units: Driven unit: alternator
Skoda OCTAVIA II Combi (1Z5) 2.0 TDI RS 2.0 L / 1968 cc 2006.04 - 2013.02 125 Kw / 170 HP Engine Code: BMN, Fitting Position: Left, Driven Units: Driven unit: alternator
Skoda SUPERB II (3T4) 2.0 TDI 16V 2.0 L / 1968 cc 2009.01 - 2015.05 103 Kw / 140 HP Engine Code: BKD, Fitting Position: Upper, Driven Units: Driven unit: alternator
Skoda SUPERB II Estate (3T5) 2.0 TDI 16V 2.0 L / 1968 cc 2009.10 - 2015.05 103 Kw / 140 HP Engine Code: BKD, Fitting Position: Upper, Driven Units: Driven unit: alternator
VW CADDY III Box (2KA, 2KH, 2CA, 2CH) 1.9 TDI 1.9 L / 1896 cc 2004.04 - 2010.08 77 Kw / 105 HP Chassis number to: 2K-5-150 000, Engine Code: BJB, Driven Units: Driven unit: alternator
VW CADDY III Box (2KA, 2KH, 2CA, 2CH) 2.0 SDI 2.0 L / 1968 cc 2004.03 - 2010.08 51 Kw / 70 HP Chassis number to: 2K-5-150 000, Engine Code: BDJ, Engine Code: BST, Driven Units: Driven unit: alternator
VW CADDY III Estate (2KB, 2KJ, 2CB, 2CJ) 1.9 TDI 1.9 L / 1896 cc 2004.04 - 2010.08 77 Kw / 105 HP Chassis number to: 2K-5-150 000, Engine Code: BJB, Driven Units: Driven unit: alternator
VW CADDY III Estate (2KB, 2KJ, 2CB, 2CJ) 2.0 SDI 2.0 L / 1968 cc 2004.03 - 2010.08 51 Kw / 70 HP Chassis number to: 2K-5-150 000, Engine Code: BDJ, Engine Code: BST, Driven Units: Driven unit: alternator
VW GOLF PLUS (5M1, 521) 1.9 TDI 1.9 L / 1896 cc 2005.01 - 2009.01 77 Kw / 105 HP Chassis number to: 1K-5-600 000, Engine Code: BKC, Driven Units: Driven unit: alternator
VW GOLF PLUS (5M1, 521) 1.9 TDI 1.9 L / 1896 cc 2005.05 - 2008.12 66 Kw / 90 HP Chassis number to: 1K-5-600 000, Engine Code: BRU, Driven Units: Driven unit: alternator
VW GOLF PLUS (5M1, 521) 2.0 TDI 16V 2.0 L / 1968 cc 2005.01 - 2013.12 103 Kw / 140 HP Driven Units: Driven unit: alternator
VW GOLF PLUS (5M1, 521) 2.0 TDI 2.0 L / 1968 cc 2005.05 - 2013.12 100 Kw / 136 HP Driven Units: Driven unit: alternator
VW GOLF PLUS (5M1, 521) 2.0 TDI 2.0 L / 1968 cc 2005.05 - 2007.05 96 Kw / 131 HP Driven Units: Driven unit: alternator
VW GOLF V (1K1) 1.9 TDI 1.9 L / 1896 cc 2003.10 - 2008.11 77 Kw / 105 HP Chassis number to: 1K-5-600 000, Engine Code: BKC, Driven Units: Driven unit: alternator
VW GOLF V (1K1) 1.9 TDI 1.9 L / 1896 cc 2004.05 - 2008.11 66 Kw / 90 HP Chassis number to: 1K-6-000 000, Engine Code: BRU, Driven Units: Driven unit: alternator
VW GOLF V (1K1) 1.9 TDI 4motion 1.9 L / 1896 cc 2004.08 - 2008.11 77 Kw / 105 HP Chassis number to: 1K-6-000 000, Engine Code: BKC, Driven Units: Driven unit: alternator
VW GOLF V (1K1) 2.0 TDI 16V 2.0 L / 1968 cc 2003.10 - 2008.11 103 Kw / 140 HP Driven Units: Driven unit: alternator
VW GOLF V (1K1) 2.0 TDI 16V 4motion 2.0 L / 1968 cc 2004.08 - 2008.11 103 Kw / 140 HP Driven Units: Driven unit: alternator
VW GOLF V (1K1) 2.0 TDI 2.0 L / 1968 cc 2005.11 - 2008.11 125 Kw / 170 HP Driven Units: Driven unit: alternator
VW GOLF V (1K1) 2.0 TDI 2.0 L / 1968 cc 2003.10 - 2008.11 100 Kw / 136 HP Driven Units: Driven unit: alternator
VW GOLF V Variant (1K5) 2.0 TDI 16V 2.0 L / 1968 cc 2007.06 - 2009.07 103 Kw / 140 HP Driven Units: Driven unit: alternator
VW GOLF V Variant (1K5) 2.0 TDI 2.0 L / 1968 cc 2007.06 - 2009.07 100 Kw / 136 HP Driven Units: Driven unit: alternator
VW JETTA III (1K2) 2.0 TDI 16V 2.0 L / 1968 cc 2005.08 - 2010.10 103 Kw / 140 HP Driven Units: Driven unit: alternator
VW JETTA III (1K2) 2.0 TDI 2.0 L / 1968 cc 2005.09 - 2010.10 100 Kw / 136 HP Driven Units: Driven unit: alternator
VW JETTA III (1K2) 2.0 TDI 2.0 L / 1968 cc 2006.10 - 2010.10 125 Kw / 170 HP Driven Units: Driven unit: alternator
VW PASSAT (3C2) 1.9 TDI 1.9 L / 1896 cc 2005.03 - 2008.11 77 Kw / 105 HP Engine Code: BKC, Fitting Position: Centre, Driven Units: Driven unit: alternator
VW PASSAT (3C2) 2.0 TDI 16V 2.0 L / 1968 cc 2005.03 - 2010.07 103 Kw / 140 HP Engine Code: BKP, Fitting Position: Upper, Driven Units: Driven unit: alternator
VW PASSAT (3C2) 2.0 TDI 16V 4motion 2.0 L / 1968 cc 2005.03 - 2010.08 103 Kw / 140 HP Engine Code: BKP, Fitting Position: Upper, Driven Units: Driven unit: alternator
VW PASSAT (3C2) 2.0 TDI 2.0 L / 1968 cc 2005.08 - 2010.07 125 Kw / 170 HP Engine Code: BMR, Fitting Position: Upper, Driven Units: Driven unit: alternator
VW PASSAT (3C2) 2.0 TDI 2.0 L / 1968 cc 2005.08 - 2006.07 90 Kw / 122 HP Driven Units: Driven unit: alternator
VW PASSAT (3C2) 2.0 TDI 2.0 L / 1968 cc 2005.08 - 2009.05 120 Kw / 163 HP Driven Units: Driven unit: alternator
VW PASSAT (3C2) 2.0 TDI 2.0 L / 1968 cc 2005.03 - 2010.11 100 Kw / 136 HP Engine Code: BMA, Fitting Position: Upper, Driven Units: Driven unit: alternator
VW PASSAT (3C2) 2.0 TDI 2.0 L / 1968 cc 2005.11 - 2007.05 88 Kw / 120 HP Engine Code: BWV, Driven Units: Driven unit: alternator
VW PASSAT Variant (3C5) 1.9 TDI 1.9 L / 1896 cc 2005.08 - 2008.11 77 Kw / 105 HP Engine Code: BKC, Fitting Position: Centre, Driven Units: Driven unit: alternator
VW PASSAT Variant (3C5) 2.0 TDI 16V 2.0 L / 1968 cc 2005.08 - 2010.11 103 Kw / 140 HP Engine Code: BKP, Fitting Position: Upper, Driven Units: Driven unit: alternator
VW PASSAT Variant (3C5) 2.0 TDI 16V 4motion 2.0 L / 1968 cc 2005.08 - 2010.11 103 Kw / 140 HP Engine Code: BKP, Fitting Position: Upper, Driven Units: Driven unit: alternator
VW PASSAT Variant (3C5) 2.0 TDI 2.0 L / 1968 cc 2005.08 - 2006.02 90 Kw / 122 HP Fitting Position: Centre, Driven Units: Driven unit: alternator
VW PASSAT Variant (3C5) 2.0 TDI 2.0 L / 1968 cc 2005.08 - 2010.11 100 Kw / 136 HP Engine Code: BMA, Fitting Position: Upper, Driven Units: Driven unit: alternator
VW PASSAT Variant (3C5) 2.0 TDI 2.0 L / 1968 cc 2005.08 - 2010.11 125 Kw / 170 HP Engine Code: BMR, Fitting Position: Upper, Driven Units: Driven unit: alternator
VW PASSAT Variant (3C5) 2.0 TDI 2.0 L / 1968 cc 2005.08 - 2009.05 120 Kw / 163 HP Driven Units: Driven unit: alternator
VW PASSAT Variant (3C5) 2.0 TDI 2.0 L / 1968 cc 2005.11 - 2007.05 88 Kw / 120 HP Engine Code: BWV, Driven Units: Driven unit: alternator
VW TOURAN (1T1, 1T2) 1.9 TDI 1.9 L / 1896 cc 2003.02 - 2004.05 74 Kw / 100 HP Fitting Position: Upper, Driven Units: Driven unit: alternator
VW TOURAN (1T1, 1T2) 1.9 TDI 1.9 L / 1896 cc 2003.08 - 2010.05 77 Kw / 105 HP Construction year to: 05.2005, Fitting Position: Upper, Driven Units: Driven unit: alternator
VW TOURAN (1T1, 1T2) 1.9 TDI 1.9 L / 1896 cc 2004.11 - 2010.05 66 Kw / 90 HP Construction year to: 05.2005, Fitting Position: Upper, Driven Units: Driven unit: alternator
VW TOURAN (1T1, 1T2) 2.0 TDI 16V 2.0 L / 1968 cc 2003.08 - 2010.05 103 Kw / 140 HP Fitting Position: Upper, Driven Units: Driven unit: alternator
VW TOURAN (1T1, 1T2) 2.0 TDI 2.0 L / 1968 cc 2003.02 - 2010.05 100 Kw / 136 HP Fitting Position: Upper, Driven Units: Driven unit: alternator
VW TOURAN (1T1, 1T2) 2.0 TDI 2.0 L / 1968 cc 2005.12 - 2010.05 125 Kw / 170 HP Fitting Position: Upper, Driven Units: Driven unit: alternator


PACKAGE & DELIVERY

PACKAGE POLY BAG&BRO BRANDED BOX OR CUSTOMIZED BOX IS AVAILABLE

PORT NINGBO/SHANGHAI

LOCATION RUIAN

PRODUCTION LEAD TIME 30DAYS AFTER COMFIRM
